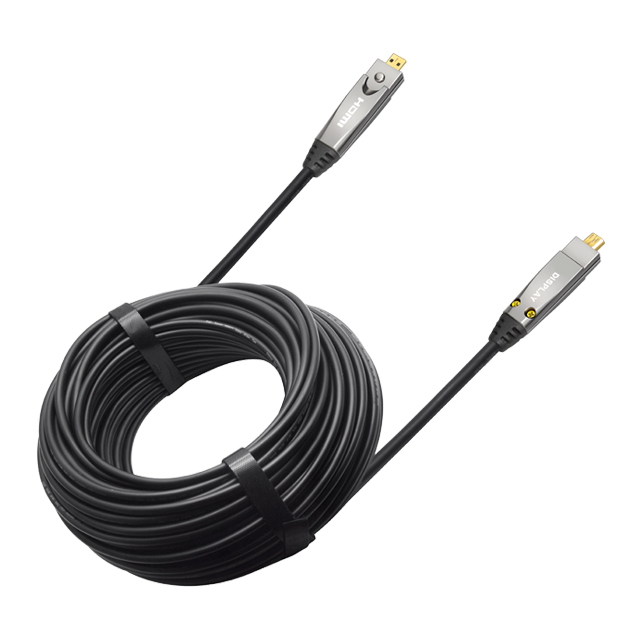

Micro HDMI2.1 8K/60Hz AOC Cable for Pipe Wiring

Product Name: Micro HDMI2.1 8K AOC Cable D male to D male
Connector: DM to DM

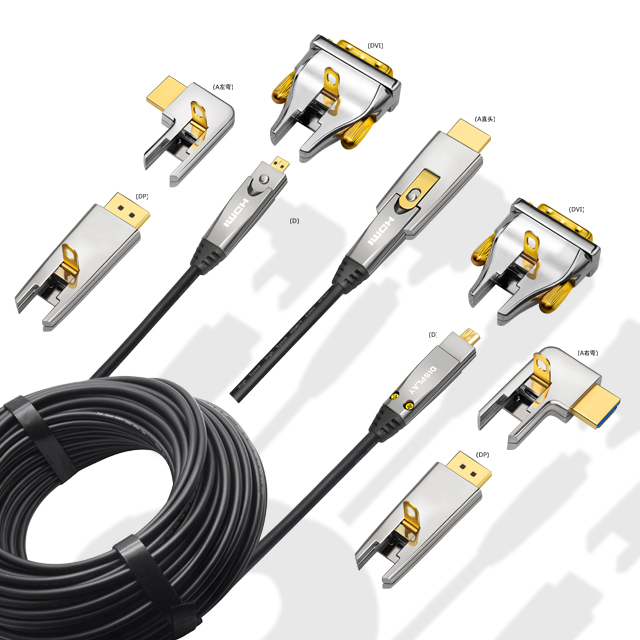

Optional Adaptors : HDMI(Straight) adaptor, HDMI( left/right angle 90 degree) adaptor, DP adaptor, DVI adaptor, etc.
Drive Chip: Silicon line (Germany) /TaiWan
VCSEL: II VI (America)
Fiber Core: OM2/OM3
Plug: terminal /Gold-plated copper shell
Outer molding: Zinc Alloy shell
OD: 4.8MM
Cable length: up to 200M
Customization : Laser logo support
Packing: neutral carton box packing or customized
  • PS-AOC 8K


8K Fiber Optic HDMI 2.1 Cable 50ft, BIFALE Detachable 8K HDMI 2.1 Cable Support eARC, 48Gbps, 8K@60Hz, 4K@120Hz with Dual Micro HDMI for RTX 3080/3090, Xbox Series X, PS5, Denon AV Receiver

Detachable HDMI 2.1 Connector for engineering installation

This patent design 8k fiber optic HDMI cable connector is detachable. Plug and play, no external power needed. It is very easy to install and remove. Solve the problem of long-distance 8k transmission wiring. No signal loss and delay. It is 10X more durable than PVC jacket.

8K@60Hz & 4K@120Hz for gaming

The 8k fiber HDMI 2.1 cable support 8K@60Hz, 4K@120Hz and it also support DTS X/DTS-HD Master Audio, Dynamic HDR, HDR 10, eARC, ALLM, QFT, QMS, VRR, BT.2020, HDCP 2.2, 48Gbps.

Uni-direction transmission

This 8k optical HDMI 2.1 cable is one-way transmission "SOURCE" plug for connecting HDMI source(Blu-ray, STBox etc.) DISPLAY plug for connecting your HDMI display device(TV, cinema projector, etc.) Backwards compatible with HDMI 2.0, 1.4 & 1.3.

Wide Compatibility

The BIFALE detachable 8K HDMI cable is compatible with Nvidia RTX 3080/3090 Xbox Series X PS5 Denon AV Receiver LG Samsung Sony TV,etc.

Place of Origin: Guangdong,China(Mainland) Brand Name: support
Model Number:
Cabel spec. Hybrid type fiber and copper wire
Application: Multimedia,Audio&Video,Computer Tensile filler material Kevlar Para-aramid or Nylon
Name: Aoc hdmi cable Outer Diameter: 4.8mm
Connector Type: Type D to Type D Micro HDMI cable Jacket: CL2 FT4 PVC, Black
Gender: Male-Male Connctor: 24K Glod-plated
Version: HDMI 8K Specification Shell: Zinc Alloy shell
Ethernet: Support to 100M Driver: Chip from Taiwan
Resolution: 8K/60HZ 4k/120HZ  4K/60HZ PD Driver : Chip from Taiwan
Bandwidth: 48Gbps Vcsel: II VI (America)
Audio rerurn channel EARC Support (50M) Length: 50M  or customized
Power supply: 5V(Non external power required) Packing: Neutral packing/wheel roll or customized
Power Consumption 250mW (max) Certification: HDMI ATC/ CE/ FCC /Rohs/ CL2/FT4
Working current ≤45mA Warranty: 12 Months
Operating temperature -20 - 70 ℃ Accessory: two micro HDMI to HDMI adaptor
