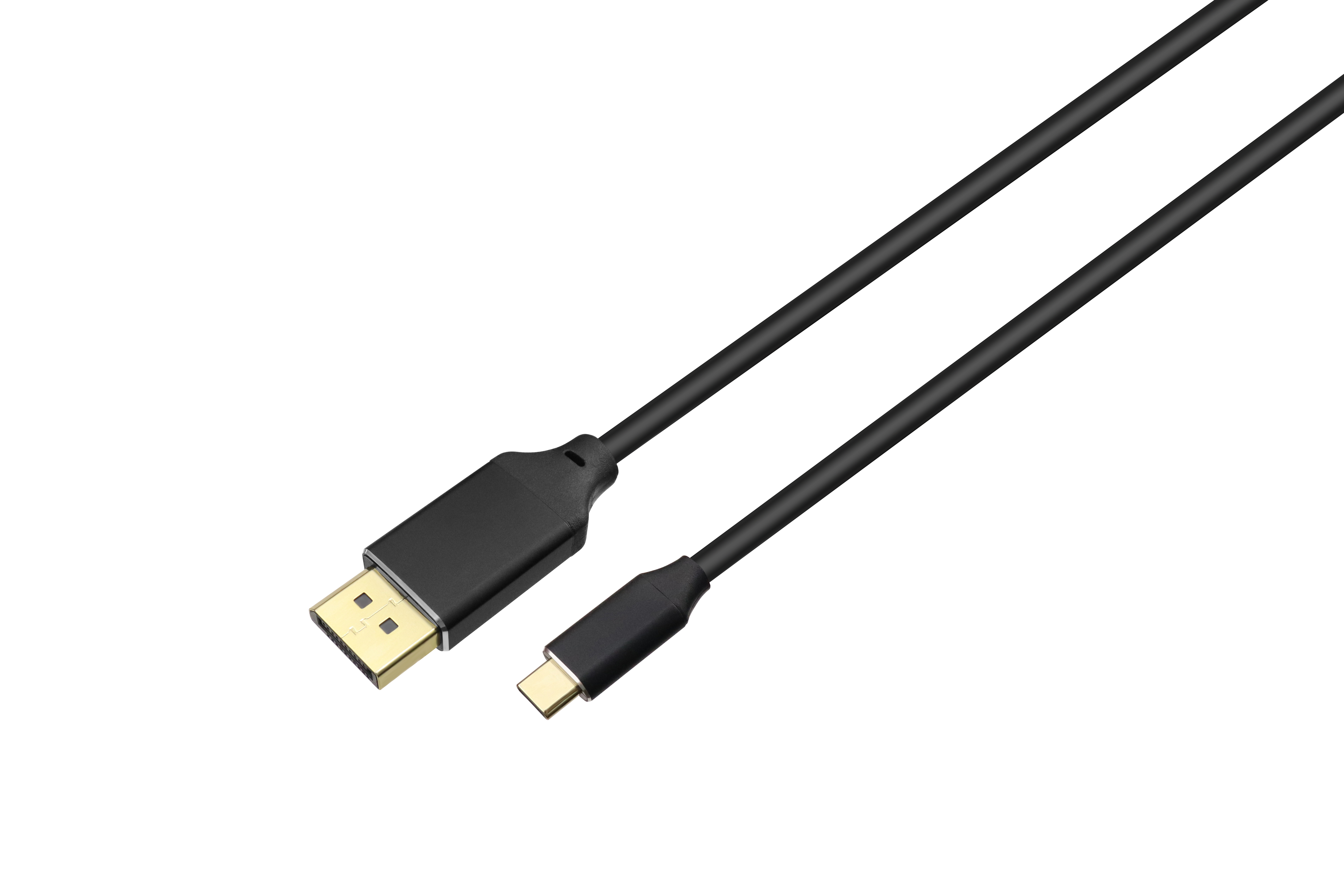

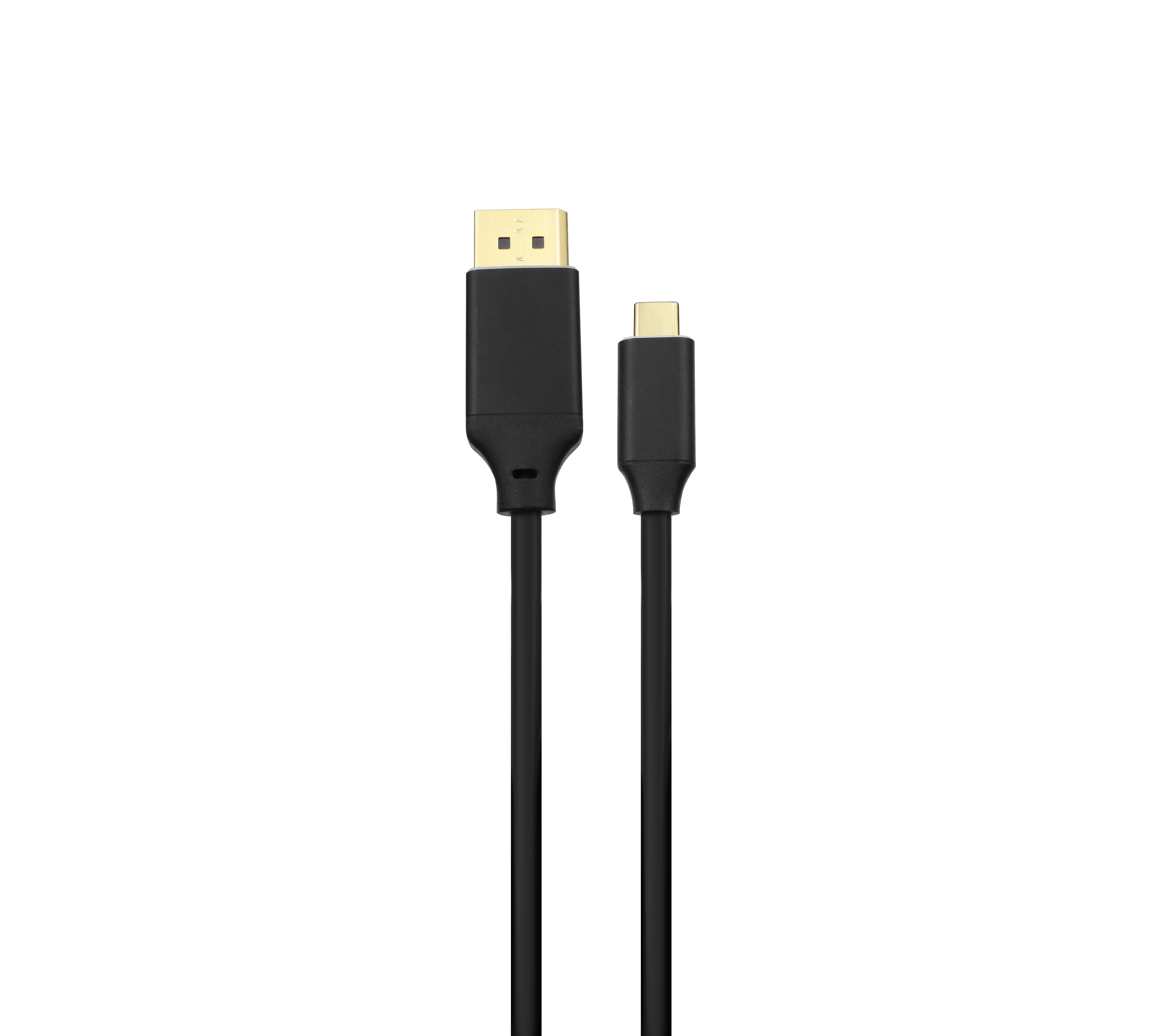

USB C to DisplayPort Cable 8K@60Hz 4K@144Hz 2K@240Hz HDR Type-C to DP 1.4 Cord 32.4Gbps Thunderbolt 3/4 Compatible for Oculus Rift S, MacBook Pro/Air, XPS 13/15, Surface Pro

USB C to DisplayPort Cable 8K@60Hz 4K@144Hz 2K@240Hz HDR Type-C to DP 1.4 Cord 32.4Gbps Thunderbolt 3/4 Compatible for Oculus Rift S, MacBook Pro/Air, XPS 13/15, Surface Pro

Length availability：0.5/1/1.5/1.8/2/3meters or customization length

Brand: OEM/ODM
Diameter：4.5mm
Connector Type A: USB type C
Connector Type B: Display port type A
Compatible Devices: Mac device, notebook device,mobile devices
Connector Gender: Male-to-Male
Resolution: 8K 60Hz 4K 144Hz 4K 120Hz
Customization support: Yes


Availability:



Inquire

Product Description

USB C male to Displayport 1.4 8K 60hz 4K 120hz

Place of Origin:	Guangdong,China(Mainland)	Brand Name:	OEM
Application:	Multimedia,Audio&Video,Computer	Cabel spec.	32AWG+24 AWG pure Cooper cable conductor double shield
Name:	USB TYPE C TO DP 1.4 cable	Outer Diameter:	4.5mm
Connector Type:	USB TYPE C, DisplayPort Type A	Jacket:	PVC
Gender:	Male-Male	Connctor:	Glod-plated
Version:	DP 1.4 version	Shell:	Aluminium connector
Resolution：	8K/60HZ 4k/120HZ 4K/60HZ	Driver :	VL100 +Flash
Bandwidth:	32Gbps	Length:	1-3M or customized
Power supply:	5V(Non external power required)	Packing:	PE bag
Power Consumption	250mW (max)	Certification:	CE/Rohs
Working current	≤45mA	Warranty:	12 Months
Operating temperature	-20 - 70 ℃	Accessory	NON
Compatibility device:	MacOS, notebook and mobile devices with type c port	Weight per meter	350g

Complies with DisplayPort Alternate Mode on USB Type-C Connector standard
HBR3 (DisplayPort High Bit Rate 3) by 32.4Gbps Bandwidth
8K 7680×4320@60Hz with DSC , 8K 7680×4320@30Hz without DSC
8K 60Hz (DSC), 8K 30Hz, 5K 60Hz, 4K 144Hz, 4K 120Hz, 4K 60Hz, 2K 240Hz, 2K 165Hz, 2K 144Hz, Full HD 240Hz, Full HD 144Hz, Full HD 120Hz
7680×4320, 5120×2880, 4096×2160, 3840×2160, 3440×1440, 3840×1080, 2560×1600, 2560×1440, 1920×1200, 1920x1080p
4320p, 2880p, 2160p, 1440p, 1080p
HDR, HDR10, 3D
Extend, Mirror, Wide Screen, Daisy Chain and Multi Stream Transport (MST) Support
Free Sync Support , G Sync Support
HDCP 2.2 (High Bandwidth Digital Content Protection)
7.1 Surround, LPCM, 24-bit audio sample size, up to 192 kHz sample rate (AC3, DTS, Dolby-HD)
Plug and Play ( No special driver installation or additional power source required )
Compatible with MacOS X, Linux, and Windows on supported systems
100% Pure Conductor
Gold Plated
Color: Black
Length: 0.5-3m

USB TYPE C TO DP 1.4 8K 60HZ 4K 144HZ (3)

USB C to DisplayPort Cable 8K@60Hz 4K@144Hz 2K@240Hz HDR Type-C to DP 1.4 Cord 32.4Gbps Thunderbolt 3/4 Compatible for Oculus Rift S, MacBook Pro/Air, XPS 13/15, Surface Pro
